KJGMaterialsAluminium prepainted – parapet qualityGolden oak – gloss 30%

Aluminium prepainted – parapet quality – Golden oak – gloss 30% RAL 8003

Golden oak – gloss 30% 8003 - Aluminium prepainted – parapet quality - Picture

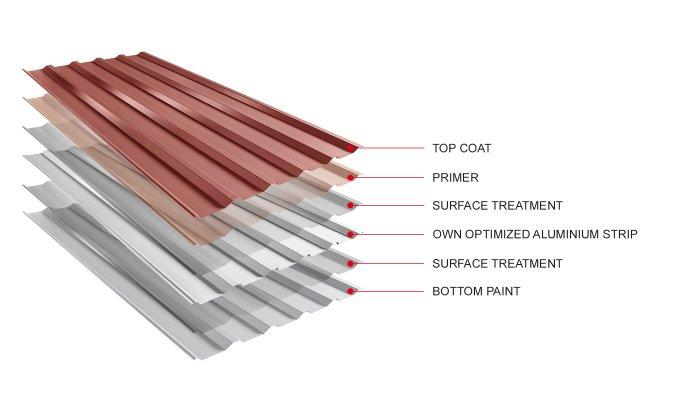

Material structure

Picture - Material structure
MaterialAluminium prepainted – parapet quality
ColoursGolden oak – gloss 30%
Colour shortcutZD
RAL colour8003
Available thicknesses0,80

Material usage

Picture - CoilsCoilsParapet quality

Material properties

KJG a.s. is a multimetallic company that uses high quality materials for processing. In its portfolio, it has seven basic materials plus painted sheets in more than 40 colour versions. The exclusive suppliers of materials are European companies that meet all the required standards. This guarantees high quality of raw materials and is a prerequisite for high quality standards of KJG a.s.

Aluminium coils and sheets are made of well-formed aluminium alloys. For this reason, aluminium sheets are easily and safely processed. Aluminium sheets are suitable for fold roofs, facade panels, gutter systems, roof covering or windowsills. Aluminium reacts with oxygen in the air, creating a natural layer of oxide. This layer provides excellent protection against corrosion.

Technical sheet

Technical sheetspeira

Suppliers

Picture - speiraEN 1396 H44 3105 (parapet quality)

speira
EN 1396 H44 3105 (parapet quality)

Overview of benefits

Recyclability
Colour fastness
Corrosion resistance
High plasticity
From traditional producers
Wide range of use

Overview of properties

Melting point660 °C
Density2,7 kg/dm³
Length change at 100 K2,4 mm/m

Weight of metals for given thicknesses

Material0,50 mm0,55 mm0,60 mm0,65 mm0,70 mm0,80 mm1,00 mm1,50 mm
Picture - Galvanized steelGalvanized steel
3,93 kg/m²4,32 kg/m²4,71 kg/m²5,10 kg/m²5,50 kg/m²6,28 kg/m²7,86 kg/m²11,79 kg/m²
Picture - Galvanized steel prepaintedGalvanized steel prepainted
3,93 kg/m²4,32 kg/m²4,71 kg/m²5,10 kg/m²5,50 kg/m²6,28 kg/m²7,86 kg/m²11,79 kg/m²
Picture - AluminiumAluminium
1,35 kg/m²1,49 kg/m²1,62 kg/m²1,75 kg/m²1,89 kg/m²2,16 kg/m²2,70 kg/m²4,05 kg/m²
Picture - Aluminium prepaintedAluminium prepainted
1,35 kg/m²1,49 kg/m²1,62 kg/m²1,75 kg/m²1,89 kg/m²2,16 kg/m²2,70 kg/m²4,05 kg/m²
Picture - Titanium zincTitanium zinc
3,60 kg/m²3,96 kg/m²4,32 kg/m²4,68 kg/m²5,04 kg/m²5,76 kg/m²7,20 kg/m²10,80 kg/m²
Picture - Titanium zinc PatinaTitanium zinc Patina
3,60 kg/m²3,96 kg/m²4,32 kg/m²4,68 kg/m²5,04 kg/m²5,76 kg/m²7,20 kg/m²10,80 kg/m²
Picture - CopperCopper
4,46 kg/m²4,90 kg/m²5,35 kg/m²5,80 kg/m²6,25 kg/m²7,14 kg/m²8,93 kg/m²13,39 kg/m²
Picture - Copper PatinaCopper Patina
4,46 kg/m²4,90 kg/m²5,35 kg/m²5,80 kg/m²6,25 kg/m²7,14 kg/m²8,93 kg/m²13,39 kg/m²
Picture - Stainless steelStainless steel
3,95 kg/m²4,34 kg/m²4,74 kg/m²5,13 kg/m²5,53 kg/m²6,32 kg/m²7,90 kg/m²11,85 kg/m²

Weights refer to 1 m² of sheet metal

Material thermal expansion of used metals

Temperature10 °C20 °C30 °C40 °C50 °C60 °C70 °C80 °C90 °C100 °C
Picture - Galvanized steelGalvanized steel
0,12 mm/m0,24 mm/m0,36 mm/m0,48 mm/m0,60 mm/m0,72 mm/m0,84 mm/m0,96 mm/m1,08 mm/m1,20 mm/m
Picture - Galvanized steel prepaintedGalvanized steel prepainted
0,12 mm/m0,24 mm/m0,36 mm/m0,48 mm/m0,60 mm/m0,72 mm/m0,84 mm/m0,96 mm/m1,08 mm/m1,20 mm/m
Picture - AluminiumAluminium
0,24 mm/m0,48 mm/m0,72 mm/m0,96 mm/m1,20 mm/m1,44 mm/m1,68 mm/m1,92 mm/m2,16 mm/m2,40 mm/m
Picture - Aluminium prepaintedAluminium prepainted
0,24 mm/m0,48 mm/m0,72 mm/m0,96 mm/m1,20 mm/m1,44 mm/m1,68 mm/m1,92 mm/m2,16 mm/m2,40 mm/m
Picture - Titanium zincTitanium zinc
0,22 mm/m0,44 mm/m0,66 mm/m0,88 mm/m1,10 mm/m1,32 mm/m1,54 mm/m1,76 mm/m1,98 mm/m2,20 mm/m
Picture - Titanium zinc PatinaTitanium zinc Patina
0,22 mm/m0,44 mm/m0,66 mm/m0,88 mm/m1,10 mm/m1,32 mm/m1,54 mm/m1,76 mm/m1,98 mm/m2,20 mm/m
Picture - CopperCopper
0,17 mm/m0,34 mm/m0,51 mm/m0,68 mm/m0,85 mm/m1,02 mm/m1,19 mm/m1,36 mm/m1,53 mm/m1,70 mm/m
Picture - Copper PatinaCopper Patina
0,17 mm/m0,34 mm/m0,51 mm/m0,68 mm/m0,85 mm/m1,02 mm/m1,19 mm/m1,36 mm/m1,53 mm/m1,70 mm/m
Picture - Stainless steelStainless steel
0,16 mm/m0,32 mm/m0,48 mm/m0,64 mm/m0,80 mm/m0,96 mm/m1,12 mm/m1,28 mm/m1,44 mm/m1,60 mm/m

Material expansion is given in millimetres per meter, the temperature is in degrees Celsius

Metals you can use together for construction

MaterialGalvanized steelGalvanized steel prepaintedAluminiumAluminium prepaintedTitanium zincTitanium zinc PatinaCopperCopper PatinaStainless steel
Picture - Galvanized steelGalvanized steel
Picture - Galvanized steel prepaintedGalvanized steel prepainted
Picture - AluminiumAluminium
Picture - Aluminium prepaintedAluminium prepainted
Picture - Titanium zincTitanium zinc
Picture - Titanium zinc PatinaTitanium zinc Patina
Picture - CopperCopper
Picture - Copper PatinaCopper Patina
Picture - Stainless steelStainless steel
connection possible
connection not possible

Similar colours/surfaces

Anthracite – gloss 30% 7016 - Picture

Anthracite – gloss 30%

RAL 7016

Testa di Moro – gloss 90% 8028 - Picture

Testa di Moro – gloss 90%

RAL 8028

White aluminum – gloss 60% 9006 - Picture

White aluminum – gloss 60%

RAL 9006

Pure white – gloss 90% 9010 - Picture

Pure white – gloss 90%

RAL 9010

Bronze – gloss 30% extra - Picture

Bronze – gloss 30%

RAL extra
