KJGMaterialsAluzincNatur

Aluzinc – Natur

Natur - Aluzinc - Picture

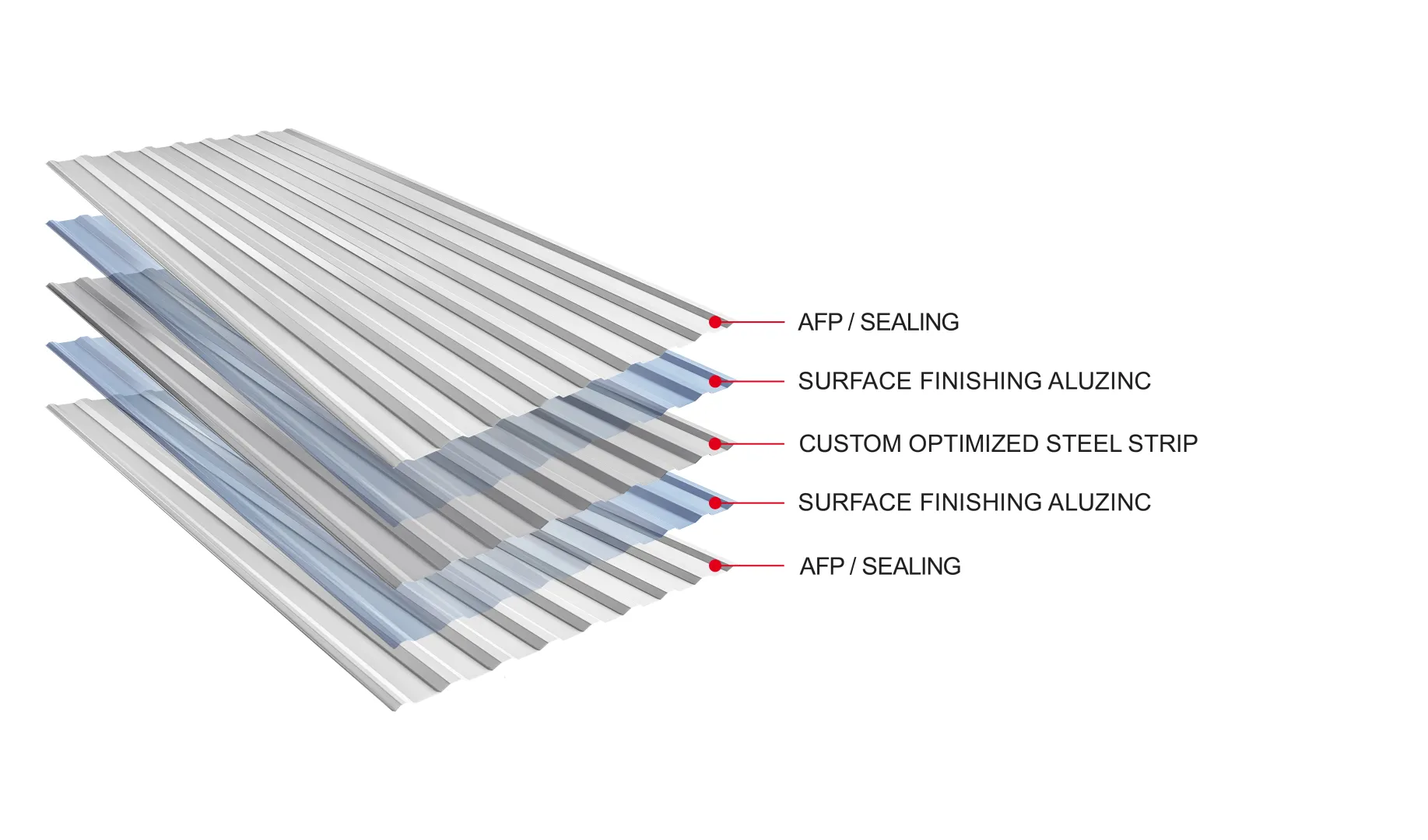

Material structure

Picture - Material structure
MaterialAluzinc
Surface finishNatur
Material shortcutAZ
Available thicknesses0,50

Material usage

Picture - CoilsCoilsPicture - Trapezoidal profiles TRTrapezoidal profiles TR

Material properties

KJG a.s. is a multimetallic company that uses high quality materials for processing. In its portfolio, it has seven basic materials plus painted sheets in more than 40 colour versions. The exclusive suppliers of materials are European companies that meet all the required standards. This guarantees high quality of raw materials and is a prerequisite for high quality standards of KJG a.s.

Aluzinc is a sheet coated with an aluminium-zinc alloy on both sides during hot-dip galvanizing, which is a process similar to zinc dipping. Aluzinc meets the highest requirements for the resistance of sheets against atmospheric corrosion and corrosion in wet environments. Percentage of individual components in the alloy: aluminium 55 %, zinc 43 % and silicium 1.6 %. This composition guarantees high resistance to corrosion due to the synergistic action of zinc cathodic protection and aluminium shielding effect.

The company KJG a.s. uses only Aluzinc with a surface area of 185 g/m².

Technical sheet

Technical sheetAluzinc

Suppliers

Picture - KJG a.s.S25GD+C 185 EN 10346

KJG a.s.
S25GD+C 185 EN 10346

Overview of benefits

Recyclability
Corrosion resistance
High plasticity
From traditional producers
Wide range of use

Overview of properties

Melting point590 °C
Density7,85 kg/dm³
Length change at 100 K1,2 mm/m

Weight of metals for given thicknesses

Material0,50 mm0,55 mm0,60 mm0,65 mm0,70 mm0,80 mm1,00 mm1,50 mm
Picture - Galvanized steelGalvanized steel
3,93 kg/m²4,32 kg/m²4,71 kg/m²5,10 kg/m²5,50 kg/m²6,28 kg/m²7,86 kg/m²11,79 kg/m²
Picture - Galvanized steel prepaintedGalvanized steel prepainted
3,93 kg/m²4,32 kg/m²4,71 kg/m²5,10 kg/m²5,50 kg/m²6,28 kg/m²7,86 kg/m²11,79 kg/m²
Picture - AluminiumAluminium
1,35 kg/m²1,49 kg/m²1,62 kg/m²1,75 kg/m²1,89 kg/m²2,16 kg/m²2,70 kg/m²4,05 kg/m²
Picture - Aluminium prepaintedAluminium prepainted
1,35 kg/m²1,49 kg/m²1,62 kg/m²1,75 kg/m²1,89 kg/m²2,16 kg/m²2,70 kg/m²4,05 kg/m²
Picture - Titanium zincTitanium zinc
3,60 kg/m²3,96 kg/m²4,32 kg/m²4,68 kg/m²5,04 kg/m²5,76 kg/m²7,20 kg/m²10,80 kg/m²
Picture - Titanium zinc PatinaTitanium zinc Patina
3,60 kg/m²3,96 kg/m²4,32 kg/m²4,68 kg/m²5,04 kg/m²5,76 kg/m²7,20 kg/m²10,80 kg/m²
Picture - CopperCopper
4,46 kg/m²4,90 kg/m²5,35 kg/m²5,80 kg/m²6,25 kg/m²7,14 kg/m²8,93 kg/m²13,39 kg/m²
Picture - Copper PatinaCopper Patina
4,46 kg/m²4,90 kg/m²5,35 kg/m²5,80 kg/m²6,25 kg/m²7,14 kg/m²8,93 kg/m²13,39 kg/m²
Picture - Stainless steelStainless steel
3,95 kg/m²4,34 kg/m²4,74 kg/m²5,13 kg/m²5,53 kg/m²6,32 kg/m²7,90 kg/m²11,85 kg/m²

Weights refer to 1 m² of sheet metal

Material thermal expansion of used metals

Temperature10 °C20 °C30 °C40 °C50 °C60 °C70 °C80 °C90 °C100 °C
Picture - Galvanized steelGalvanized steel
0,12 mm/m0,24 mm/m0,36 mm/m0,48 mm/m0,60 mm/m0,72 mm/m0,84 mm/m0,96 mm/m1,08 mm/m1,20 mm/m
Picture - Galvanized steel prepaintedGalvanized steel prepainted
0,12 mm/m0,24 mm/m0,36 mm/m0,48 mm/m0,60 mm/m0,72 mm/m0,84 mm/m0,96 mm/m1,08 mm/m1,20 mm/m
Picture - AluminiumAluminium
0,24 mm/m0,48 mm/m0,72 mm/m0,96 mm/m1,20 mm/m1,44 mm/m1,68 mm/m1,92 mm/m2,16 mm/m2,40 mm/m
Picture - Aluminium prepaintedAluminium prepainted
0,24 mm/m0,48 mm/m0,72 mm/m0,96 mm/m1,20 mm/m1,44 mm/m1,68 mm/m1,92 mm/m2,16 mm/m2,40 mm/m
Picture - Titanium zincTitanium zinc
0,22 mm/m0,44 mm/m0,66 mm/m0,88 mm/m1,10 mm/m1,32 mm/m1,54 mm/m1,76 mm/m1,98 mm/m2,20 mm/m
Picture - Titanium zinc PatinaTitanium zinc Patina
0,22 mm/m0,44 mm/m0,66 mm/m0,88 mm/m1,10 mm/m1,32 mm/m1,54 mm/m1,76 mm/m1,98 mm/m2,20 mm/m
Picture - CopperCopper
0,17 mm/m0,34 mm/m0,51 mm/m0,68 mm/m0,85 mm/m1,02 mm/m1,19 mm/m1,36 mm/m1,53 mm/m1,70 mm/m
Picture - Copper PatinaCopper Patina
0,17 mm/m0,34 mm/m0,51 mm/m0,68 mm/m0,85 mm/m1,02 mm/m1,19 mm/m1,36 mm/m1,53 mm/m1,70 mm/m
Picture - Stainless steelStainless steel
0,16 mm/m0,32 mm/m0,48 mm/m0,64 mm/m0,80 mm/m0,96 mm/m1,12 mm/m1,28 mm/m1,44 mm/m1,60 mm/m

Material expansion is given in millimetres per meter, the temperature is in degrees Celsius

Metals you can use together for construction

MaterialGalvanized steelGalvanized steel prepaintedAluminiumAluminium prepaintedTitanium zincTitanium zinc PatinaCopperCopper PatinaStainless steel
Picture - Galvanized steelGalvanized steel
Picture - Galvanized steel prepaintedGalvanized steel prepainted
Picture - AluminiumAluminium
Picture - Aluminium prepaintedAluminium prepainted
Picture - Titanium zincTitanium zinc
Picture - Titanium zinc PatinaTitanium zinc Patina
Picture - CopperCopper
Picture - Copper PatinaCopper Patina
Picture - Stainless steelStainless steel
connection possible
connection not possible
