Galvanized steel prepainted STUCCO – Anthracite STUCCO RAL 7016

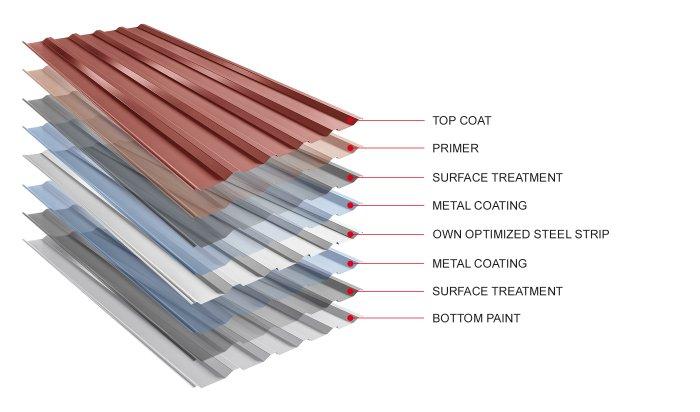

Material structure
| Material | Galvanized steel prepainted STUCCO |
| Colours | Anthracite STUCCO |
| Colour shortcut | ANS |
| RAL colour | 7016 |
| Available thicknesses | 0,50 |
Material usage
Material properties
KJG a.s. is a multimetallic company that uses high quality materials for processing. In its portfolio, it has seven basic materials plus painted sheets in more than 40 colour versions. The exclusive suppliers of materials are European companies that meet all the required standards. This guarantees high quality of raw materials and is a prerequisite for high quality standards of KJG a.s.
Galvanized steel prepainted is another development stage of the steel industry with a focus on corrosion protection a and adaptation to current requirements in the construction industry. Galvanized steel prepainted combines the excellent mechanical properties of zinc-coated steel with additional corrosion protection in the form of an organic coating. The components of a gutter system are surface treated by powder coating.
Technical sheet
Suppliers
Tata Steel
EN 10204 3.1 DX51D + ZM140 (coil)
Overview of benefits
Overview of properties
| Melting point | 1 539 °C |
| Density | 7,86 kg/dm³ |
| Length change at 100 K | 1,2 mm/m |
Weight of metals for given thicknesses
| Material | 0,50 mm | 0,55 mm | 0,60 mm | 0,65 mm | 0,70 mm | 0,80 mm | 1,00 mm | 1,50 mm |
|---|---|---|---|---|---|---|---|---|
 Galvanized steel | 3,93 kg/m² | 4,32 kg/m² | 4,71 kg/m² | 5,10 kg/m² | 5,50 kg/m² | 6,28 kg/m² | 7,86 kg/m² | 11,79 kg/m² |
 Galvanized steel prepainted | 3,93 kg/m² | 4,32 kg/m² | 4,71 kg/m² | 5,10 kg/m² | 5,50 kg/m² | 6,28 kg/m² | 7,86 kg/m² | 11,79 kg/m² |
 Aluminium | 1,35 kg/m² | 1,49 kg/m² | 1,62 kg/m² | 1,75 kg/m² | 1,89 kg/m² | 2,16 kg/m² | 2,70 kg/m² | 4,05 kg/m² |
 Aluminium prepainted | 1,35 kg/m² | 1,49 kg/m² | 1,62 kg/m² | 1,75 kg/m² | 1,89 kg/m² | 2,16 kg/m² | 2,70 kg/m² | 4,05 kg/m² |
 Titanium zinc | 3,60 kg/m² | 3,96 kg/m² | 4,32 kg/m² | 4,68 kg/m² | 5,04 kg/m² | 5,76 kg/m² | 7,20 kg/m² | 10,80 kg/m² |
 Titanium zinc Patina | 3,60 kg/m² | 3,96 kg/m² | 4,32 kg/m² | 4,68 kg/m² | 5,04 kg/m² | 5,76 kg/m² | 7,20 kg/m² | 10,80 kg/m² |
 Copper | 4,46 kg/m² | 4,90 kg/m² | 5,35 kg/m² | 5,80 kg/m² | 6,25 kg/m² | 7,14 kg/m² | 8,93 kg/m² | 13,39 kg/m² |
 Copper Patina | 4,46 kg/m² | 4,90 kg/m² | 5,35 kg/m² | 5,80 kg/m² | 6,25 kg/m² | 7,14 kg/m² | 8,93 kg/m² | 13,39 kg/m² |
 Stainless steel | 3,95 kg/m² | 4,34 kg/m² | 4,74 kg/m² | 5,13 kg/m² | 5,53 kg/m² | 6,32 kg/m² | 7,90 kg/m² | 11,85 kg/m² |
Weights refer to 1 m² of sheet metal
Material thermal expansion of used metals
| Temperature | 10 °C | 20 °C | 30 °C | 40 °C | 50 °C | 60 °C | 70 °C | 80 °C | 90 °C | 100 °C |
|---|---|---|---|---|---|---|---|---|---|---|
| Galvanized steel | 0,12 mm/m | 0,24 mm/m | 0,36 mm/m | 0,48 mm/m | 0,60 mm/m | 0,72 mm/m | 0,84 mm/m | 0,96 mm/m | 1,08 mm/m | 1,20 mm/m |
| Galvanized steel prepainted | 0,12 mm/m | 0,24 mm/m | 0,36 mm/m | 0,48 mm/m | 0,60 mm/m | 0,72 mm/m | 0,84 mm/m | 0,96 mm/m | 1,08 mm/m | 1,20 mm/m |
| Aluminium | 0,24 mm/m | 0,48 mm/m | 0,72 mm/m | 0,96 mm/m | 1,20 mm/m | 1,44 mm/m | 1,68 mm/m | 1,92 mm/m | 2,16 mm/m | 2,40 mm/m |
| Aluminium prepainted | 0,24 mm/m | 0,48 mm/m | 0,72 mm/m | 0,96 mm/m | 1,20 mm/m | 1,44 mm/m | 1,68 mm/m | 1,92 mm/m | 2,16 mm/m | 2,40 mm/m |
| Titanium zinc | 0,22 mm/m | 0,44 mm/m | 0,66 mm/m | 0,88 mm/m | 1,10 mm/m | 1,32 mm/m | 1,54 mm/m | 1,76 mm/m | 1,98 mm/m | 2,20 mm/m |
| Titanium zinc Patina | 0,22 mm/m | 0,44 mm/m | 0,66 mm/m | 0,88 mm/m | 1,10 mm/m | 1,32 mm/m | 1,54 mm/m | 1,76 mm/m | 1,98 mm/m | 2,20 mm/m |
| Copper | 0,17 mm/m | 0,34 mm/m | 0,51 mm/m | 0,68 mm/m | 0,85 mm/m | 1,02 mm/m | 1,19 mm/m | 1,36 mm/m | 1,53 mm/m | 1,70 mm/m |
| Copper Patina | 0,17 mm/m | 0,34 mm/m | 0,51 mm/m | 0,68 mm/m | 0,85 mm/m | 1,02 mm/m | 1,19 mm/m | 1,36 mm/m | 1,53 mm/m | 1,70 mm/m |
| Stainless steel | 0,16 mm/m | 0,32 mm/m | 0,48 mm/m | 0,64 mm/m | 0,80 mm/m | 0,96 mm/m | 1,12 mm/m | 1,28 mm/m | 1,44 mm/m | 1,60 mm/m |
Material expansion is given in millimetres per meter, the temperature is in degrees Celsius
Metals you can use together for construction
| Material | Galvanized steel | Galvanized steel prepainted | Aluminium | Aluminium prepainted | Titanium zinc | Titanium zinc Patina | Copper | Copper Patina | Stainless steel |
|---|---|---|---|---|---|---|---|---|---|
| Galvanized steel | |||||||||
| Galvanized steel prepainted | |||||||||
| Aluminium | |||||||||
| Aluminium prepainted | |||||||||
| Titanium zinc | |||||||||
| Titanium zinc Patina | |||||||||
| Copper | |||||||||
| Copper Patina | |||||||||
| Stainless steel |
