KJGMaterialsGalvanized steelMARCEGAGLIA

Galvanized steel – MARCEGAGLIA

MARCEGAGLIA - Galvanized steel - Picture

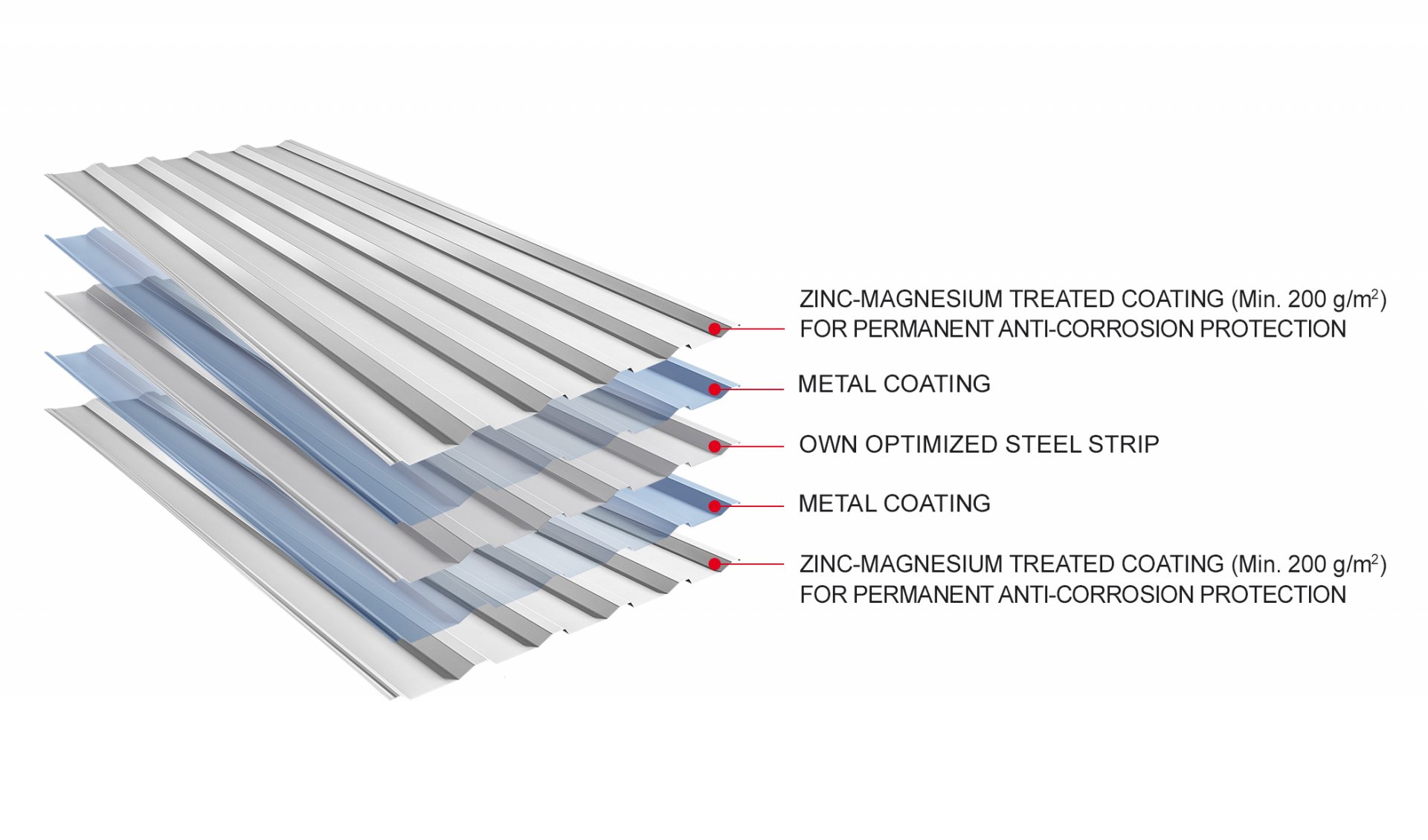

Material structure

Picture - Material structure
MaterialGalvanized steel
Surface finishMARCEGAGLIA
Material shortcutMARN
Available thicknesses0,50 0,55 0,70 1,00 1,50

Material usage

Picture - Half-round gutter systemHalf-round gutter systemPicture - Square gutter systemSquare gutter systemTrough guttersPicture - CoilsCoilsPicture - SheetsSheetsPicture - Trapezoidal profiles TRTrapezoidal profiles TRPicture - Roof covering KJG FALZRoof covering KJG FALZ

Material properties

KJG a.s. is a multimetallic company that uses high quality materials for processing. In its portfolio, it has seven basic materials plus painted sheets in more than 40 colour versions. The exclusive suppliers of materials are European companies that meet all the required standards. This guarantees high quality of raw materials and is a prerequisite for high quality standards of KJG a.s.

Steel is an alloy of iron and carbon with a maximum carbon content of 2.14 %. Steel, a metal alloy with iron as the main component, is especially valued for its mechanical stability and load-bearing capacity. The use of a thin film of zinc protects steel against corrosion. About half of the world yield of zinc is used for galvanizing and thus also for corrosion protection.

Technical sheet

Technical sheetU. S. SteelTechnical sheetMARCEGAGLIATechnical sheetVoestalpineTechnical sheetSIGNODETechnical sheetWuppermann

Suppliers

Picture - U. S. Steel – EN 10204-2.1 DX51D + Z 200

U. S. Steel – EN 10204-2.1 DX51D + Z 200

Picture - MARCEGAGLIAEN 10346 DX51D + Z 200

MARCEGAGLIA
EN 10346 DX51D + Z 200

Picture - Voestalpine EN 10204-2.2 DX53D + Z 200

Voestalpine
EN 10204-2.2 DX53D + Z 200

Picture - SIGNODE – EN 10204-2.2 S235 JRG2 Z150/150

SIGNODE – EN 10204-2.2 S235 JRG2 Z150/150

Picture - Wuppermann EN 10204-2.2 S250 GD Z450 MA

Wuppermann
EN 10204-2.2 S250 GD Z450 MA

Overview of benefits

Recyclability
Corrosion resistance
High plasticity
From traditional producers
Wide range of use

Overview of properties

Melting point1 539 °C
Density7,86 kg/dm³
Length change at 100 K1,2 mm/m

Weight of metals for given thicknesses

Material0,50 mm0,55 mm0,60 mm0,65 mm0,70 mm0,80 mm1,00 mm1,50 mm
Picture - Galvanized steelGalvanized steel
3,93 kg/m²4,32 kg/m²4,71 kg/m²5,10 kg/m²5,50 kg/m²6,28 kg/m²7,86 kg/m²11,79 kg/m²
Picture - Galvanized steel prepaintedGalvanized steel prepainted
3,93 kg/m²4,32 kg/m²4,71 kg/m²5,10 kg/m²5,50 kg/m²6,28 kg/m²7,86 kg/m²11,79 kg/m²
Picture - AluminiumAluminium
1,35 kg/m²1,49 kg/m²1,62 kg/m²1,75 kg/m²1,89 kg/m²2,16 kg/m²2,70 kg/m²4,05 kg/m²
Picture - Aluminium prepaintedAluminium prepainted
1,35 kg/m²1,49 kg/m²1,62 kg/m²1,75 kg/m²1,89 kg/m²2,16 kg/m²2,70 kg/m²4,05 kg/m²
Picture - Titanium zincTitanium zinc
3,60 kg/m²3,96 kg/m²4,32 kg/m²4,68 kg/m²5,04 kg/m²5,76 kg/m²7,20 kg/m²10,80 kg/m²
Picture - Titanium zinc PatinaTitanium zinc Patina
3,60 kg/m²3,96 kg/m²4,32 kg/m²4,68 kg/m²5,04 kg/m²5,76 kg/m²7,20 kg/m²10,80 kg/m²
Picture - CopperCopper
4,46 kg/m²4,90 kg/m²5,35 kg/m²5,80 kg/m²6,25 kg/m²7,14 kg/m²8,93 kg/m²13,39 kg/m²
Picture - Copper PatinaCopper Patina
4,46 kg/m²4,90 kg/m²5,35 kg/m²5,80 kg/m²6,25 kg/m²7,14 kg/m²8,93 kg/m²13,39 kg/m²
Picture - Stainless steelStainless steel
3,95 kg/m²4,34 kg/m²4,74 kg/m²5,13 kg/m²5,53 kg/m²6,32 kg/m²7,90 kg/m²11,85 kg/m²

Weights refer to 1 m² of sheet metal

Material thermal expansion of used metals

Temperature10 °C20 °C30 °C40 °C50 °C60 °C70 °C80 °C90 °C100 °C
Picture - Galvanized steelGalvanized steel
0,12 mm/m0,24 mm/m0,36 mm/m0,48 mm/m0,60 mm/m0,72 mm/m0,84 mm/m0,96 mm/m1,08 mm/m1,20 mm/m
Picture - Galvanized steel prepaintedGalvanized steel prepainted
0,12 mm/m0,24 mm/m0,36 mm/m0,48 mm/m0,60 mm/m0,72 mm/m0,84 mm/m0,96 mm/m1,08 mm/m1,20 mm/m
Picture - AluminiumAluminium
0,24 mm/m0,48 mm/m0,72 mm/m0,96 mm/m1,20 mm/m1,44 mm/m1,68 mm/m1,92 mm/m2,16 mm/m2,40 mm/m
Picture - Aluminium prepaintedAluminium prepainted
0,24 mm/m0,48 mm/m0,72 mm/m0,96 mm/m1,20 mm/m1,44 mm/m1,68 mm/m1,92 mm/m2,16 mm/m2,40 mm/m
Picture - Titanium zincTitanium zinc
0,22 mm/m0,44 mm/m0,66 mm/m0,88 mm/m1,10 mm/m1,32 mm/m1,54 mm/m1,76 mm/m1,98 mm/m2,20 mm/m
Picture - Titanium zinc PatinaTitanium zinc Patina
0,22 mm/m0,44 mm/m0,66 mm/m0,88 mm/m1,10 mm/m1,32 mm/m1,54 mm/m1,76 mm/m1,98 mm/m2,20 mm/m
Picture - CopperCopper
0,17 mm/m0,34 mm/m0,51 mm/m0,68 mm/m0,85 mm/m1,02 mm/m1,19 mm/m1,36 mm/m1,53 mm/m1,70 mm/m
Picture - Copper PatinaCopper Patina
0,17 mm/m0,34 mm/m0,51 mm/m0,68 mm/m0,85 mm/m1,02 mm/m1,19 mm/m1,36 mm/m1,53 mm/m1,70 mm/m
Picture - Stainless steelStainless steel
0,16 mm/m0,32 mm/m0,48 mm/m0,64 mm/m0,80 mm/m0,96 mm/m1,12 mm/m1,28 mm/m1,44 mm/m1,60 mm/m

Material expansion is given in millimetres per meter, the temperature is in degrees Celsius

Metals you can use together for construction

MaterialGalvanized steelGalvanized steel prepaintedAluminiumAluminium prepaintedTitanium zincTitanium zinc PatinaCopperCopper PatinaStainless steel
Picture - Galvanized steelGalvanized steel
Picture - Galvanized steel prepaintedGalvanized steel prepainted
Picture - AluminiumAluminium
Picture - Aluminium prepaintedAluminium prepainted
Picture - Titanium zincTitanium zinc
Picture - Titanium zinc PatinaTitanium zinc Patina
Picture - CopperCopper
Picture - Copper PatinaCopper Patina
Picture - Stainless steelStainless steel
connection possible
connection not possible

Similar colours/surfaces
